EZ Grout Masonry Equipment

Manufacturer: EZ Grout
Model Year: 2015
Model: GH75, GPH75, HL400KIT, HL14EXTKIT, and others
Price: Call for pricing
Stock Number:
Hours:
Options: We have a large inventory of new and used EZ Grout masonry equipment available for rental or purchase. Please call for pricing.

Additional Features:

EZ Grout Corporation logo

Grout is a construction material used to embed rebars in masonry walls, connect sections of pre-cast concrete, fill voids, and seal joints which use the best machinery for this, you can browse heavy machinery classifieds to find this machinery and find out how to get it. Grout is generally a mixture of water, cement, sand, fine gravel, often color tint, and is applied as a thick emulsion and hardens over time, similar to mortar. Properly mixed and applied grout creates a waterproof seal, unlike other structural pastes such as plaster or joint compoun.

EZ Grout Corporation manufactures grout equipment in Ohio, USA, and makes these grout mixers and delivery systems easy to use and clean, and easily adaptable to your current construction equipment. We have a large inventory of parts for EZ Grout equipment. This includes: Mud Hogs, Grout Hogs, Hog Leg Wall bracing and mortar tubs.
Call 847-595-8444 or email us for any EZ Grout or Multiquip products.

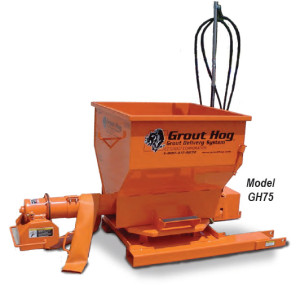

GH75 Hydraulic Powered or GPH75 Gas Powered Grout Hog

The Grout Hog®
Hydraulic or Gas Powered – Optional Lifting Bale

  • GH75: EZ Grout Hydraulic Powered Grout Hog - 985 lbs.Simple, dependable, and time-saving
  • No more lugging around 5 gallon buckets
  • Only requires 2 people for complete masonry block fill; One to guide the hose, the other to drive the forklift
  • Removable auger allows for clean-ups in under 15 minutes
  • Field-tested in thousands of on-the-job applications
  • Hooks to auxiliary hydraulics of forklift
  • Also delivers sand and dry materials
  • GPH75: EZ Grout - Gas Powered Grout Hog - 1436 lbs.Unique swivel-base system allows workers to reach 17 ft. (5.2 m)
    of wall quickly without moving forklift
  • 8′ (2.44 m) reinforced, collapsible dispensing hose standard;
    4′ (1.22 m) hose also available
  • Standard capacity ¾ yd3 (.57 m3)
  • Material discharge rate of ¾ cu. yd. in 2 ½ minutes
  • Remote control operation (forward/reverse of auger)
  • Hydraulic flow rate 10 gpm @ 2000 psi
  • Handles up to ¾ inch (1.91 cm) aggregate
  • Empty weight: 985 lbs. (446.7 kg)
  • Gross weight: 3,885 lbs. (1807.5 kg)
  • Overall dimensions: (LxWxH) 92 x 41½ x 49 inches
  • Manuals:
    Portable Digital File (PDF)GH75 Grout Hog | Portable Digital File (PDF)GPH75 Grout Hog | Portable Digital File (PDF)MH12 Mud HogPortable Digital File (PDF)Hog Legs

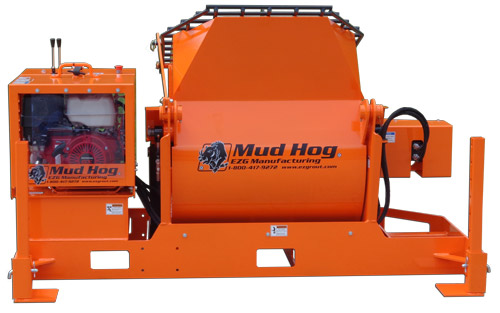

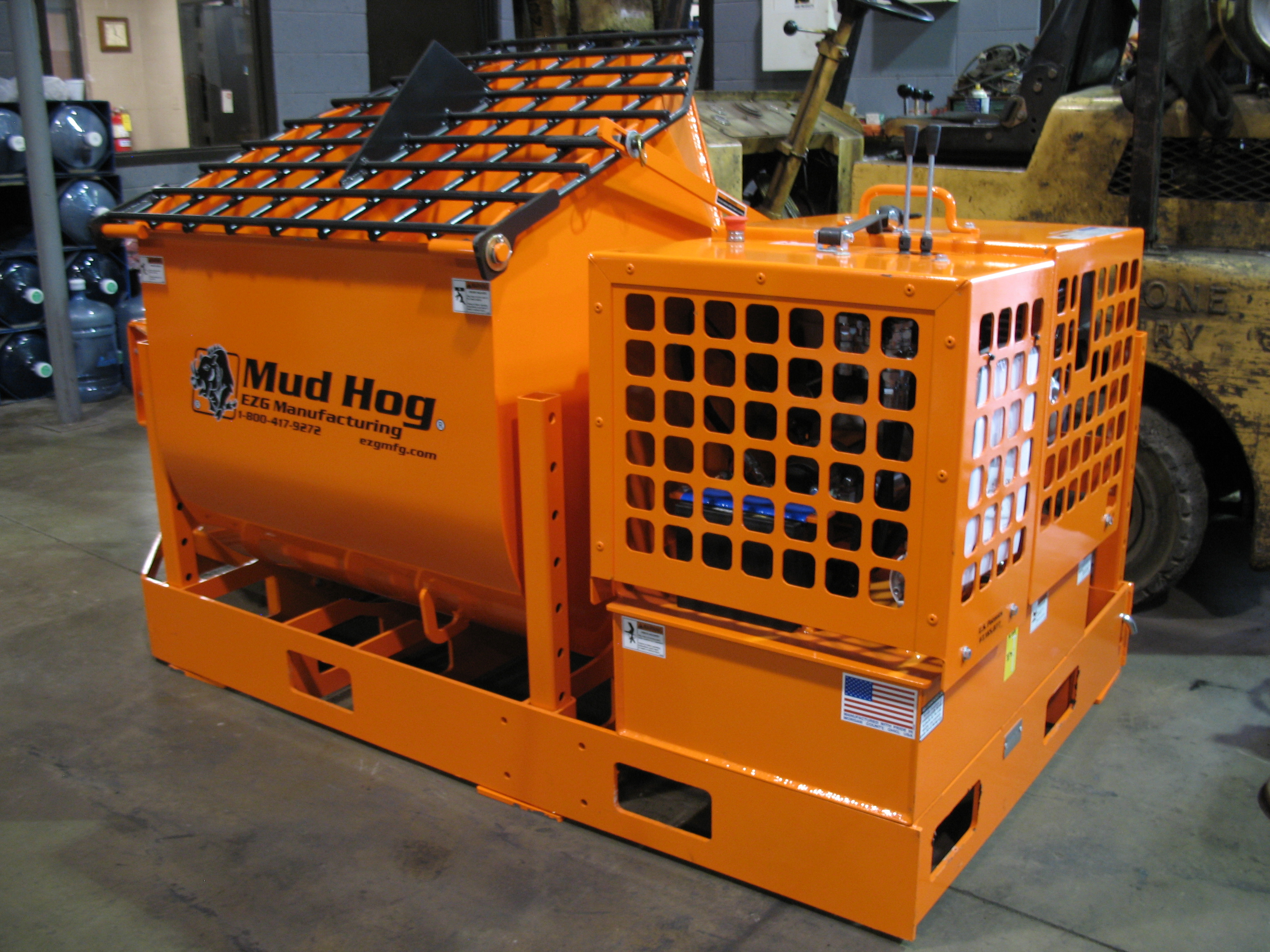

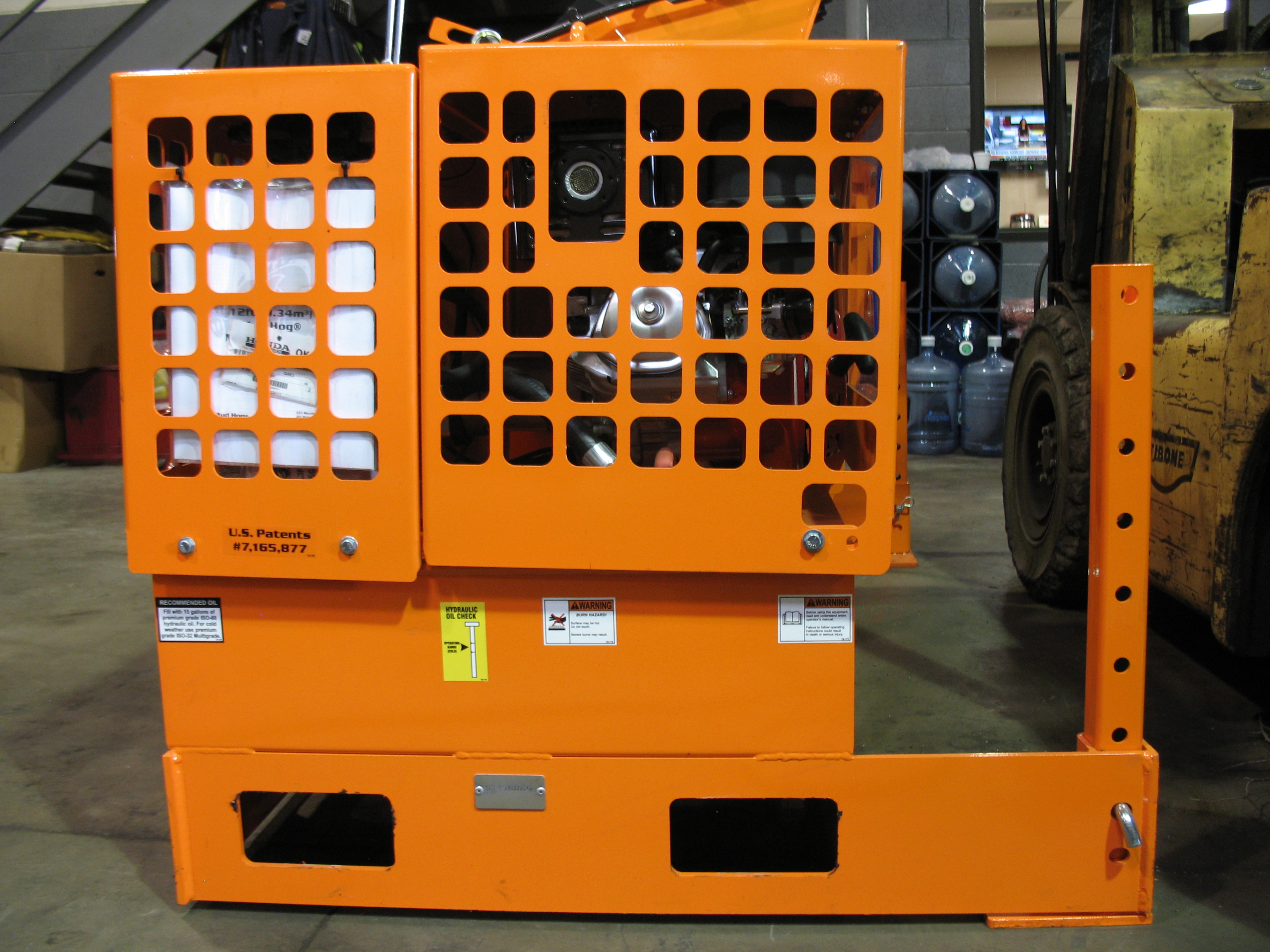

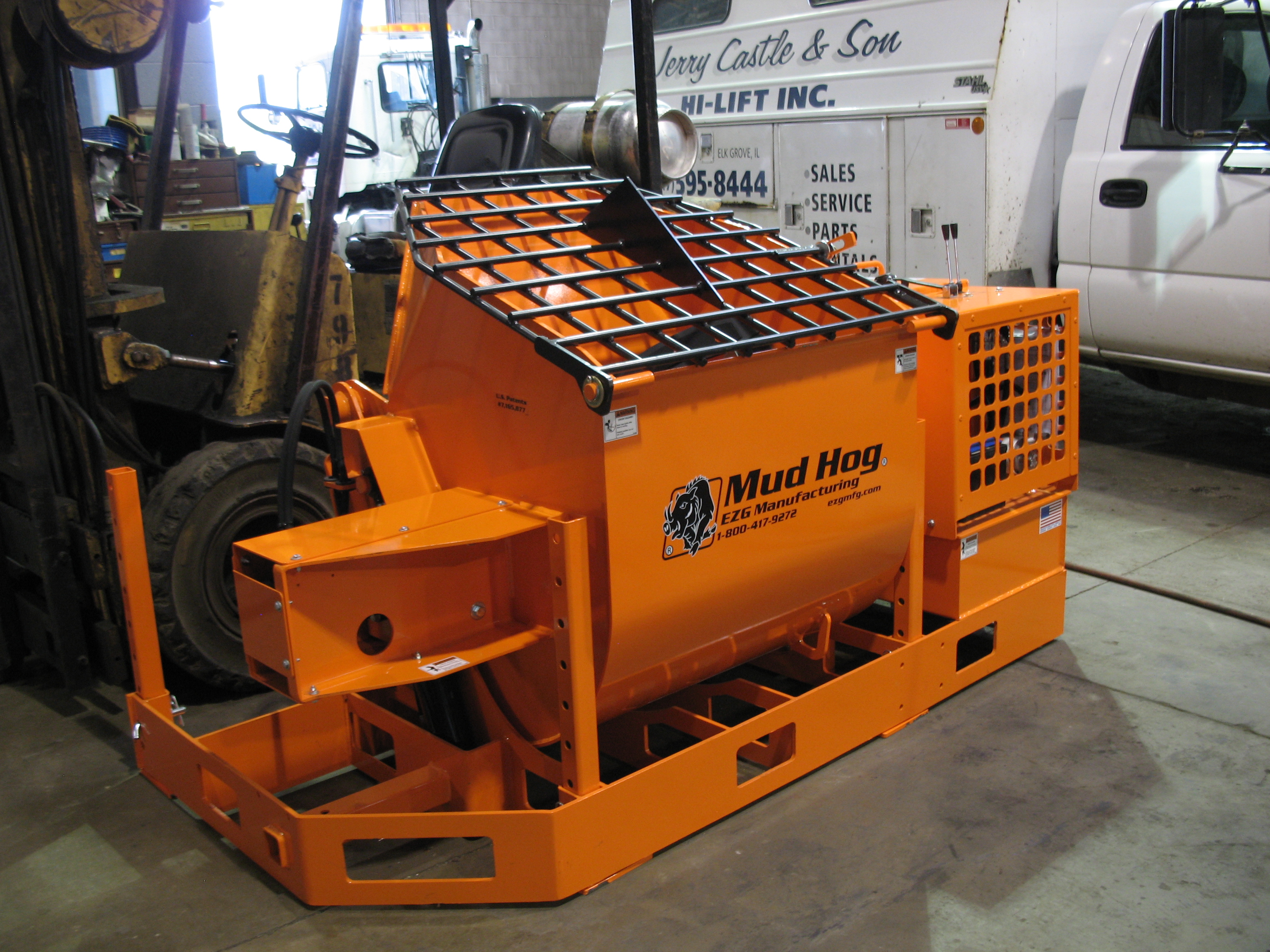

MH12 Mud Hog Mixing Station

MH12 Mud Hog Mixing Station

The Mud Hog®
The premier standard for grout, mortar and concrete workhorse mixers, delivery and support systems.

  • Triple use: Grout, Concrete and Mortar
  • Becomes a portable batch plant for mixing grout on site – compacts to fit into standard 8′ truck bed
  • Ideal for use with silo mix or bag mixes

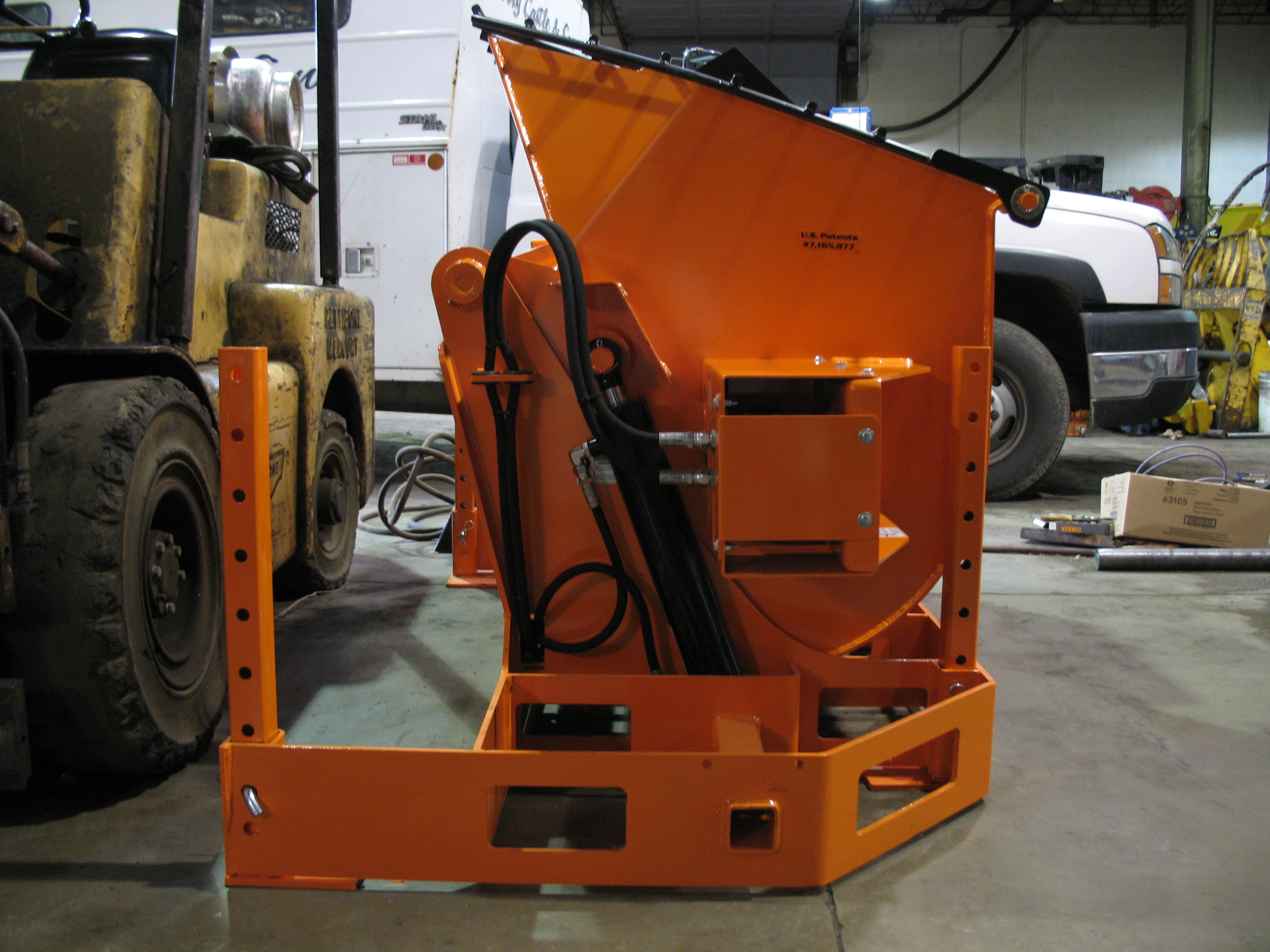

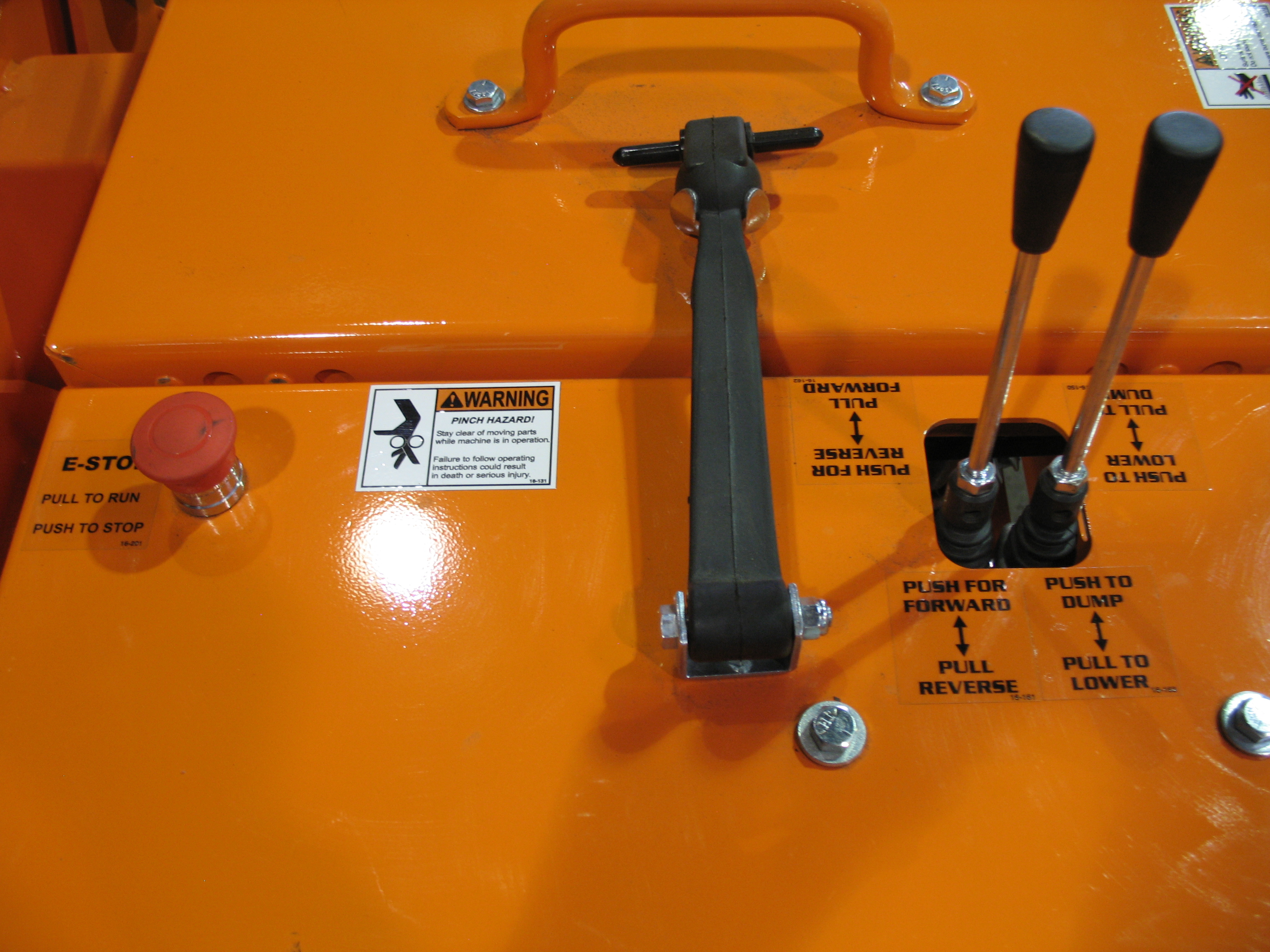

  • Hydraulic dump and drive

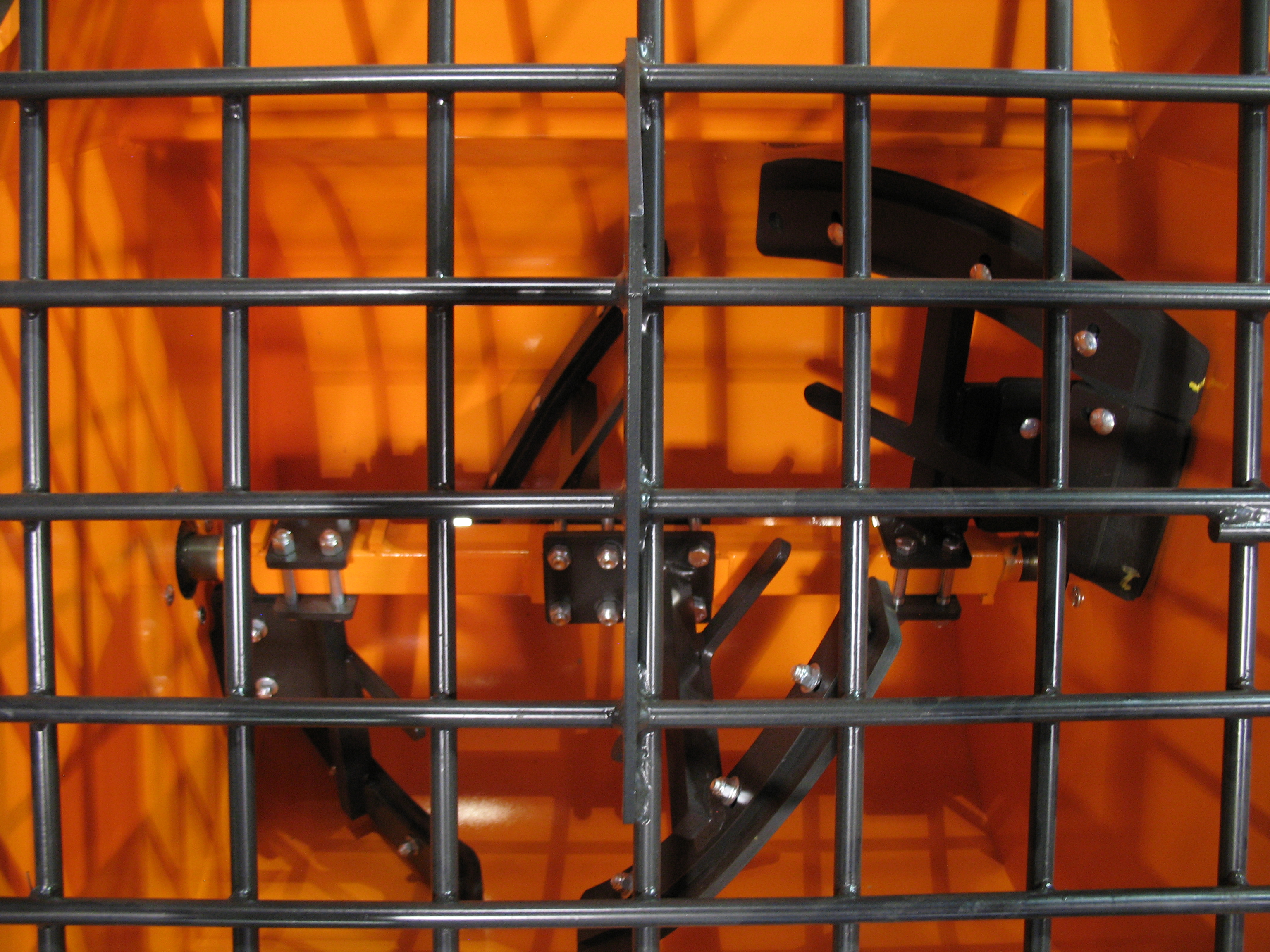

  • Reversible mixing paddles prevent clogging
  • Vertical paddle orientation to minimize splashing and cut through material
  • Loads below waist level and dumps high with adjustable heights to optimize ergonomic operation
  • Fork pockets accessible from all sides
  • Adjustable legs and outriggers for stability
  • Dumps into the Grout Hog® for easy masonry block filling
  • Manual recoil and electric start
  • Specifications:
  • 3 to 4 bag capacity or 12 cu.ft. (.34 m3)

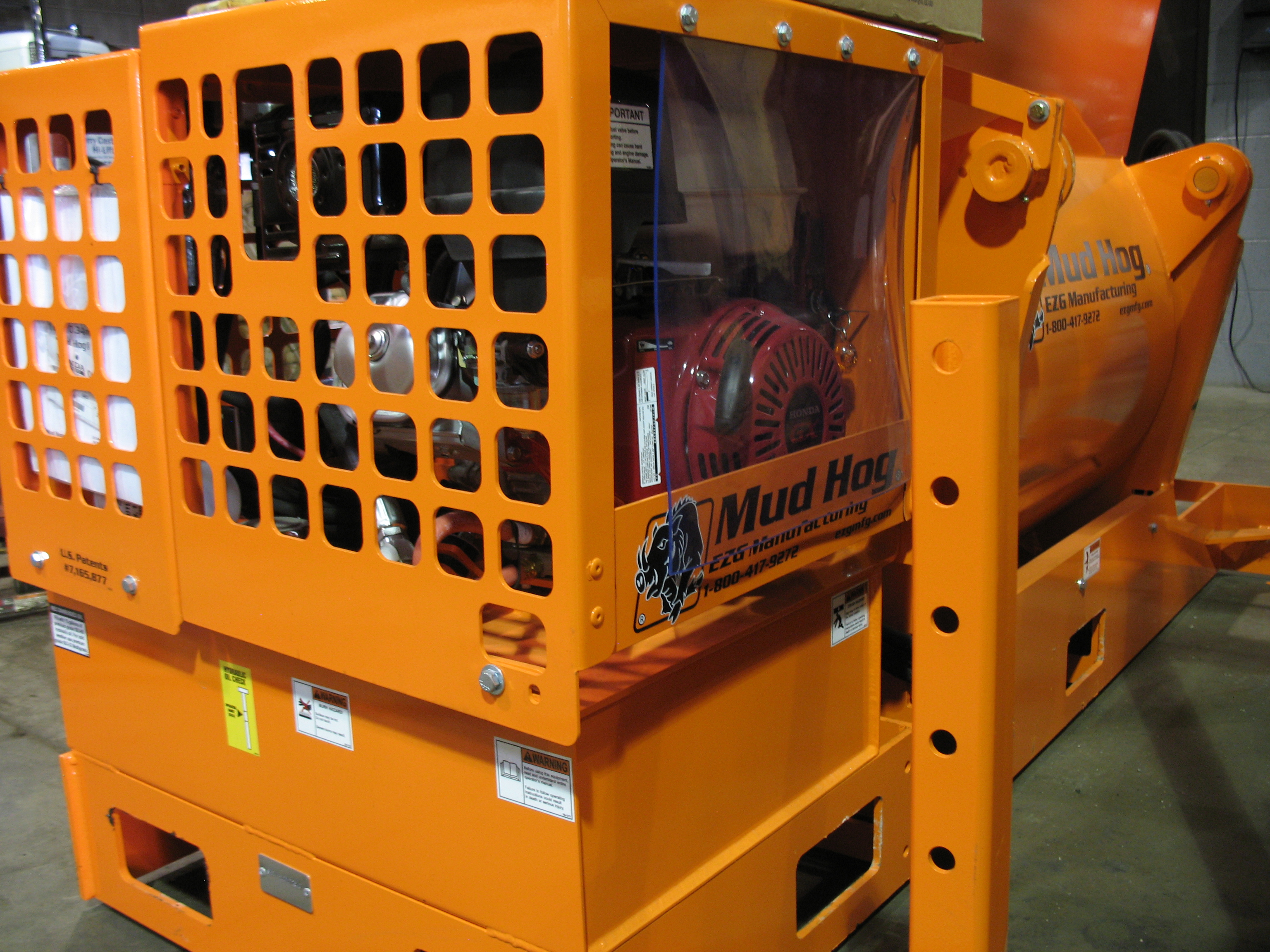

  • 11.7 HP Honda Gas Engine (Standard)
  • Will mix up to 1″ (2.54 cm) aggregate
  • Discharges up to 49″ high
  • Empty weight 1695 lbs. (768.8 kg)
  • Gross weight 3495 lbs. (1588 kg)
  • Hydraulic dump system
  • Hydraulic drive system
  • Manual recoil and electric start
  • 3/8″ drum end and ¼” drum wrap thickness
  • Overall dimensions:
    (L × W × H) 82″ x 42″ x 49.5″
  • Options:
  • 10 HP Electric Motor – 1PH/230V
  • 10 HP Electric Motor – 3PH/230V
  • 10 HP Electric Motor – 3PH/460V
  • 9.5 HP Kubota Diesel Engine
  • Water bar for easy filling – optional,
    re-settable meter
  • Axle kit for portability and towing light kit for road safety
  • Manuals:
    Portable Digital File (PDF)
    MH12 Mud Hog | Portable Digital File (PDF)GH75 Grout Hog | Portable Digital File (PDF)GPH75 Grout Hog | Portable Digital File (PDF)Hog Legs

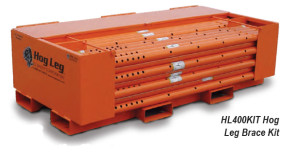

HL400KIT Hog Leg Kit (32 of each OD)

Hog Legs®
Braces up to 400 Linear Wall Feet

  • HL400KIT: EZ Grout Hog Leg Kit (32 of each OD) 3790 lbs.Works on any type of block
  • Adjusts to any wall height
  • Lightweight – the heaviest piece is only 38 lbs. (17.24 kg)
  • Kicker extensions can be used for even more stability
  • Makes job-sites safer and more productive
  • Fastens through head-joints to eliminate block cutting and purchase of anchor bolts
  • Includes convenient, lockable storage rack to deter theft
  • Manuals:
    Portable Digital File (PDF)GH75 Grout Hog | Portable Digital File (PDF)GPH75 Grout Hog | Portable Digital File (PDF)MH12 Mud HogPortable Digital File (PDF)Hog Legs

HL14EXTKIT Hog Leg 14′ Extension Pipe Kit (16 of each OD)

Hog Leg® Extension Kit
Brace Higher and Farther with Your Existing Hog Legs

  • HL14EXTKIT: EZ Grout Hog Leg 14 ft Extension Pipe Kit (16-of-each-OD) 2370 lbs.Works on any type of block
  • Adjusts to any wall height
  • Lightweight
  • Kicker extensions can be used for even more stability
  • Makes job-sites safer and more productive
  • Fastens through head-joints to eliminate block cutting and purchase of anchor bolts
  • Includes convenient, lockable storage rack to deter theft
  • Manuals:
    Portable Digital File (PDF)GH75 Grout Hog | Portable Digital File (PDF)GPH75 Grout Hog | Portable Digital File (PDF)MH12 Mud HogPortable Digital File (PDF)Hog Legs

EZ Grout Inventory

GROUT HOG
GH75: Grout Hog: Hydraulic Powered Grout Hog, 985lb
GPH75: Grout Hog: Gas Powered Grout Hog, 1436lb
GPHC75: Grout Hog: Grout Hog with Crane Bail, 1525lb
UGH75: Uphill Hydraulic Powered Grout Hog, 1055lb
UGPH75: Uphill Gas Powered Grout Hog, 1495lb
UGPHC75: Uphill Gas Powered Grout Hog with Crane Bail, 1565lb

MUD HOG MIXING STATION
MH9: Mud Hog 8HP Gas Powered Hydraulic Mixing Station (9 cf) with axle, 1325lb
MH9F: Mud Hog 8HP Gas Powered Hydraulic Mixing Station (9 cf) with fork pockets, 1225lb
MH12: Mud Hog 13HP Gas Powered Hydraulic Mixing Station (12cf) without axle, 1695lb
MH12AXLE: MH12 Mud Hog Axle Kit
MH20: Mud Hog 13HP Gas Powered Hydraulic Mixing Station (20cf), 2295lb
MH20DIESEL: Mud Hog 9.5HP Diesel Powered Hydraulic Mixing Station (20 cf), 2395lb
MMH12: Mobile Mud Hog 12 cf, 1000lb
MMH20: Mobile Mud Hog 20 cf, 1000lb

HOG LEG WALL BRACING
HL400KIT: Hog Leg Wall Bracing: Hog Leg Kit (32 of each OD), 3790lb
HL14EXTKIT: Hog Leg Wall Bracing: Hog Leg 14′ Extension Pipe Kit (16 of each OD), 2370lb
GHL400KIT: Galvanized Hog Leg Kit (32 of each OD), 4000lb
GHL14EXTKIT: Galvanized Hog Leg 14′ Extension Pipe Kit (16 of each OD), 2370lb

HOG TROUGH PRODUCTS
HTP10: Poly Hog Trough 10 cf, 60lb
HTP10HD: Poly Hog Trough Heavy Duty 10 cf, 80lb
HTP10W: Poly Hog Trough 10 cf with wheels, 82lb
HTP10WHD: Poly Hog Trough with wheels, 95lb
HTP10C: Poly Hog Trough with crane bail, 110lb
HTP10C-A-1: Poly Hog Trough Crane Bail Assembly with Clevis (no straps), 129lb

MISCELLANEOUS MASONRY JOBSITE PRODUCTS
BOHO: Booger Hog Aluminum Shaft Model, 25lb
HC: Hog Cart, 230lb
HCR50L: Hog Crusher Material Recycling System Standard Flow, 1600lb
HCR50H: Hog Crusher Material Recycling System High Flow 22+ GPM, 1600lb
SHB: Sand Hog Bucket (Bobcat) – Hog Slopper 6.75 to 9.0 cf Adjustable, 260lb
SHF: Sand Hog Bucket (Forklift) – Hog Slopper 6.75 to 9.0 cf Adjustable, 280lb
